RAVATHERM Ceramic Fiber
Ravatherm Ceramic Fiber is an insulating material that is used for applications in between -50°C and 1430°C thermal insulation needed, which is consist of (spun technology) long, flexible and combined woven fibers. Ceramic fiber consists three elements basicly; silica, alumina and zirconium and it is a thermal insulation material for high temperature. Ravatherm Ceramic Fiber blanket is used in the industrial furnace insulation, boiler, pipe and chimney’s insulation and it also used in all technical insulations, which requires high temperature.

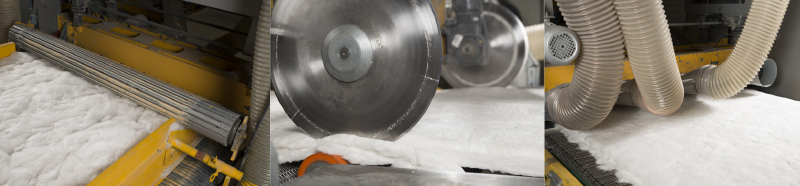

Ravatherm Ceramic Fiber is produced on the Turkiye’s first high-tech ceramic fiber production line that has very low shot (unfiberized) content with the amount of high pure silica and aluminum. No chemical binders are used in the production of Ravatherm Ceramic Fiber thus during the first combustion it does not smoke and there is no odor during the combustion. It saves more energy rather than fire and insulation bricks due to having less heat in their structure.
Ravatherm Ceramic Fiber is not affected by chemicals (except phosphoric and hydrofluoric acid and strong alkalis such as Na2O, K2O). Its thermal and characteristic properties remain the same after being wetted and dried, and it still has the same thermal insulation properties. Ravatherm Ceramic Fiber which has long fiber structure thanks to its production technology, due to this feature, no chemical binder is needed for It is production.
Areas of Use
- HVAC (Heating, Ventilation and Air Conditioning) Duct insulation, furnace linings
- Construction and Insulation Building insulation, fireproofing, sound insulation
- Metallurgy and Metal Industry Furnace linings, foundry applications, metal casting
- Petrochemical Insulation in pipelines, refineries and chemical processing plants
- Power Generation Boiler insulation, insulation in power plants
- Automotive Heat shields, exhaust system insulation
- Maritime Shipbuilding, offshore platform insulation
- Fire Safety Fire-resistant clothing, fire doors, fire barriers
- Defense and Aviation Spacecraft, aircraft, military applications
- Industrial Furnaces and Ovens Furnace linings, furnace insulation
- Sound Insulation Acoustic panels, machine sound insulation
- Electronic Manufacturing Insulation in electronic components and devices
- Glass Industry Glass furnace insulation
- Ceramic Industry Furnace insulation, pottery manufacturing
- Chemical Processing Insulation in chemical reactors and vessels
- Food Processing Oven insulation, heat-resistant equipment
- Textile Industry Insulation in textile machinery
- Pharmaceutical Industry Insulation in equipment for pharmaceutical manufacturing
- Research and Development High temperature experiments, laboratory equipment insulation
- Mining and Minerals Oven linings, mineral processing
- Paper and Pulp Industry Boiler insulation, paper processing equipment
- Plastic Industry Injection molding equipment insulation
- Water Treatment Plants Insulation in high temperature processes
- Automatic Machinery Insulation in high heat generation machinery
- Agricultural Processing Equipment insulation in food drying processes
- Renewable Energy Insulation in solar panel manufacturing
- Cremation Services Oven linings in crematoriums
- Waste Incineration Oven linings, insulation in incineration processes
- Nuclear Industry Insulation in nuclear reactors
- Casting and Metal Casting Mold insulation, core making
Ravatherm CF BLANKET
Description
Ravatherm Ceramic Fiber Blanket is a product which produced by the melting the zirconium, silica and alumina at high temperature and after formed fibers the product obtained by giving the form of a blanket at various thicknesses and densities with the pressure.
Product Size
- 25 x 610 x 7200mm, 50 x 610 x 3600mm,
- 38 x 610 x 4730mm, 20 x 610 x 9000mm,
- 14400 x 610 x 13mm in addition to standard size production, special size production can also be done.
Features
- High tensile strength and high elasticity
- Low thermal conductivity value
- High thermal resistance value
- Good sound absorption property
- Low temperature storage
- Minimal shrinkage at high temperature
- Not affected by thermal shock
Ravatherm CF BULK
Description

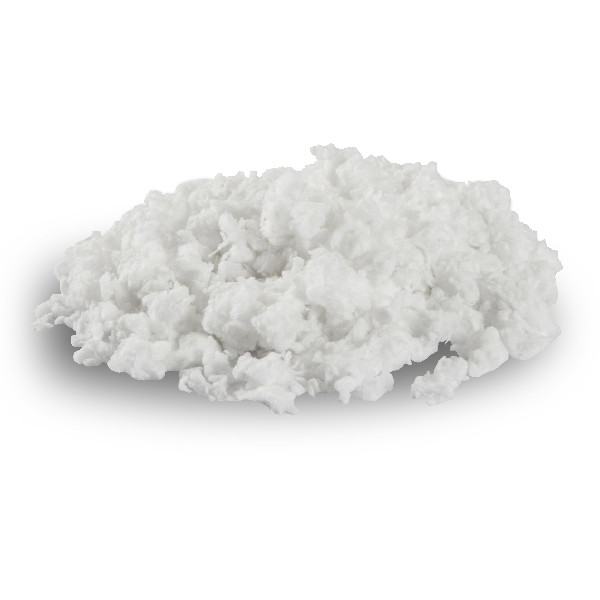

Ravatherm Bulk Ceramic Fiber is used as the basic raw material in the production of formable and vacuum shaped panels and molds.
Product Size
- Served in 13-14 -20 kilos packages
Features
- Low dust content
- Homogeneous distribution
- Minimal shrinkage at high temperature
- No chemicals are used
- Ability to produce desired fiber length and diameter
Typical Applications
- In industrial applications
- In filling gaps between device and walls
- In high boiler and furnace insulation where plate or blankets can not be applied
- On hot surfaces (mold pressed to form) as heat insulation filler material
- Production of materials for the foundry industry and raw materials in tandish refractories
